Regular price CAD$325.00
This is a USED module, and may have cosmetic blemishes.

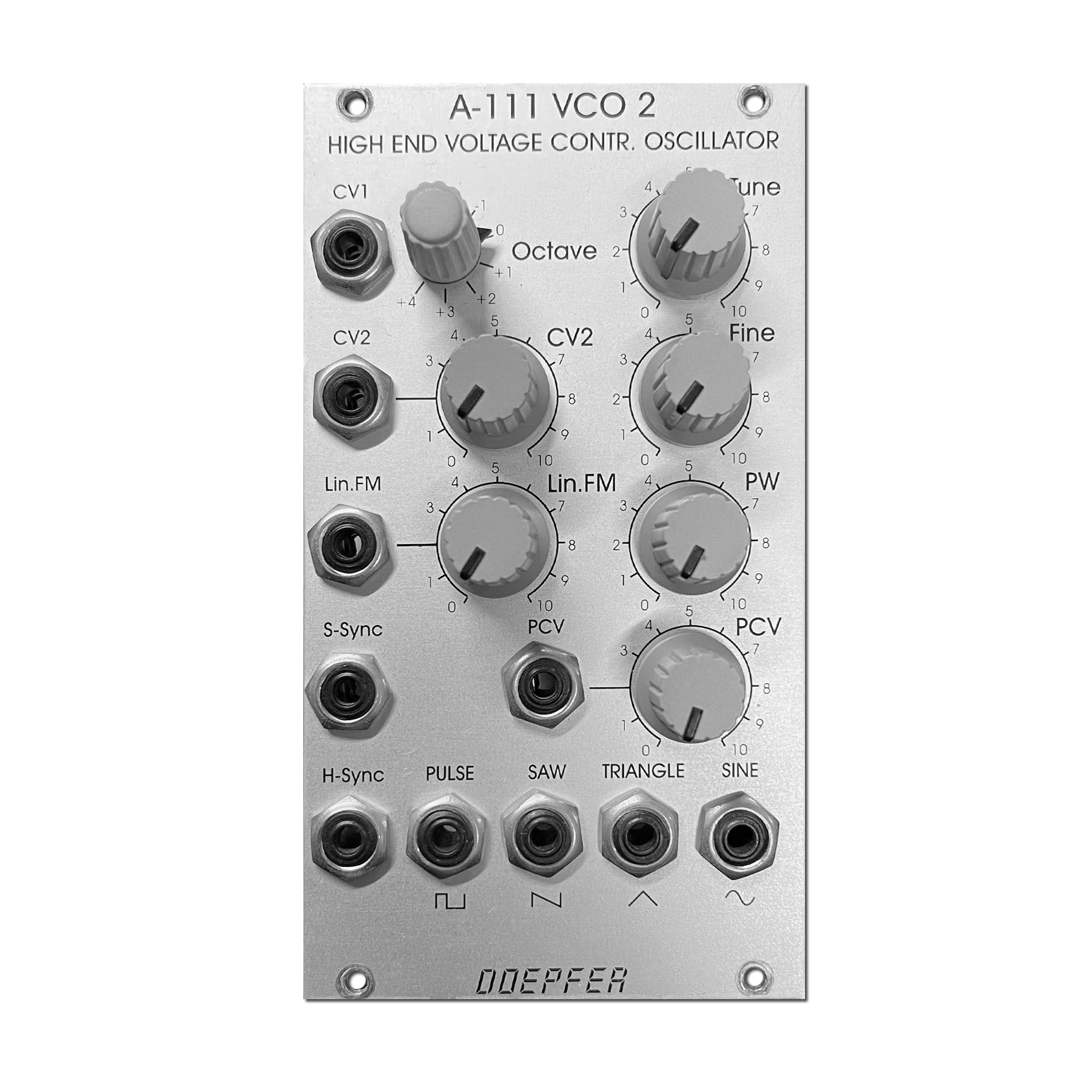

The module has the CEM3340 circuit. The hard sync of the CEM3340 works different compared to most other VCOs. The excerpt from the data sheet below shows the details. The CEM3340 type of hard sync is also explained in the A-111-1 user manual on page 9: A111_man.pdf.
- Width: 14HP
- Depth: 55mm
- Power: 70mA @ +12V / 50mA -12V
