Regular price CAD$319.00

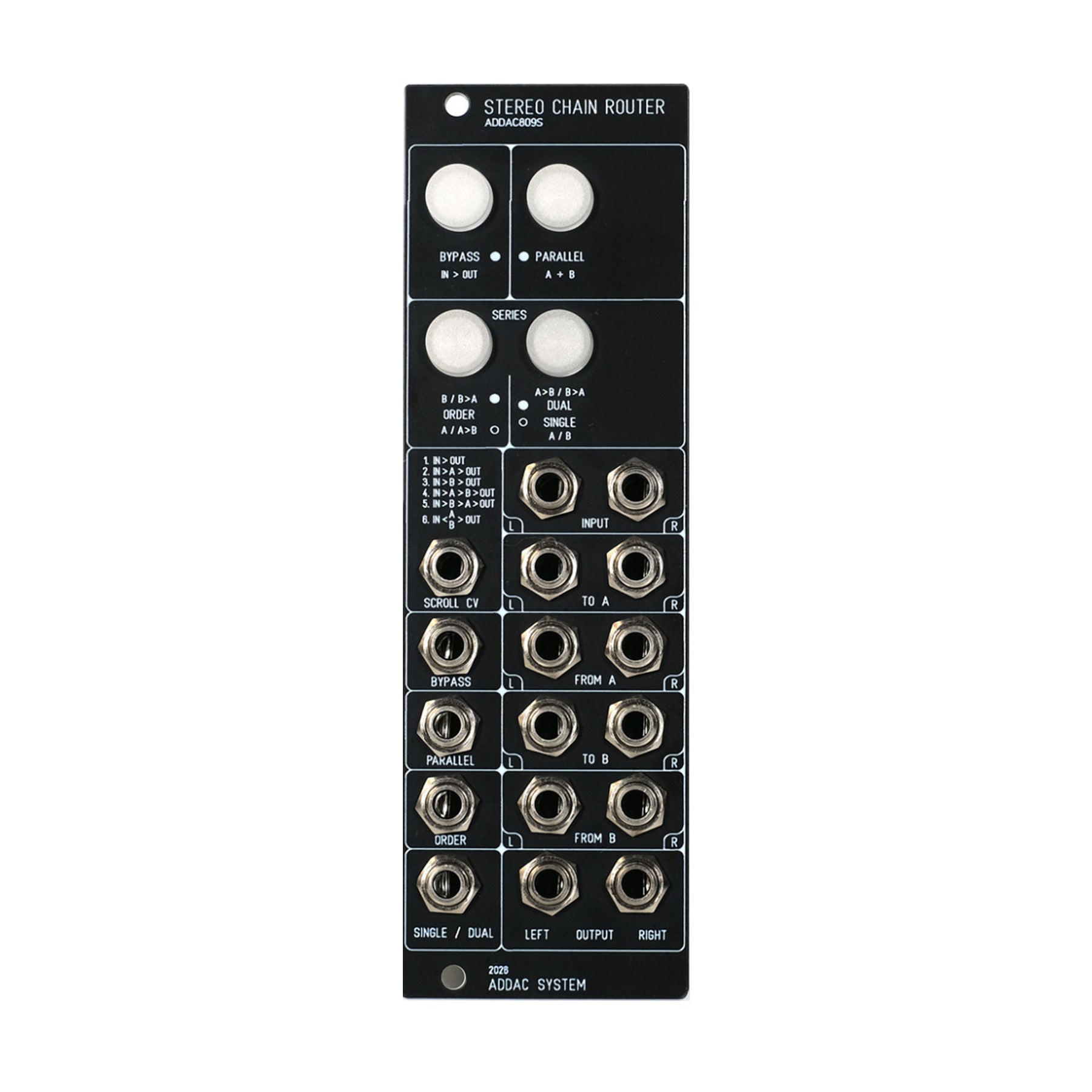

ADDAC809S is a dynamic CV operated I/O router that allows two sources (Stereo Audio or CV) to be routed through 2 different chains (of one or more modules) before being sent to an output. Six routing patterns are allowed:
1. IN > OUT
2. IN > CHAIN A > OUT
3. IN > CHAIN B > OUT
4. IN > CHAIN A > CHAIN B > OUT
5. IN > CHAIN B > CHAIN A > OUT
6. IN > CHAIN A > OUT CHAIN B
A practical example is to have an audio source, a delay and a looper. And the question: should the delay be placed before or after the looper? Sometimes you may need the delay to be before the looper as you may want to sample the audio with the delay or sample the pure audio source and apply the delay afterwards.This small utility module solves this issue on the fly without having to repatch anything.
- Width: 8 HP
- Depth: 55mm
- Power: 100mA +12V / 40mA -12V
