Regular price CAD$558.00

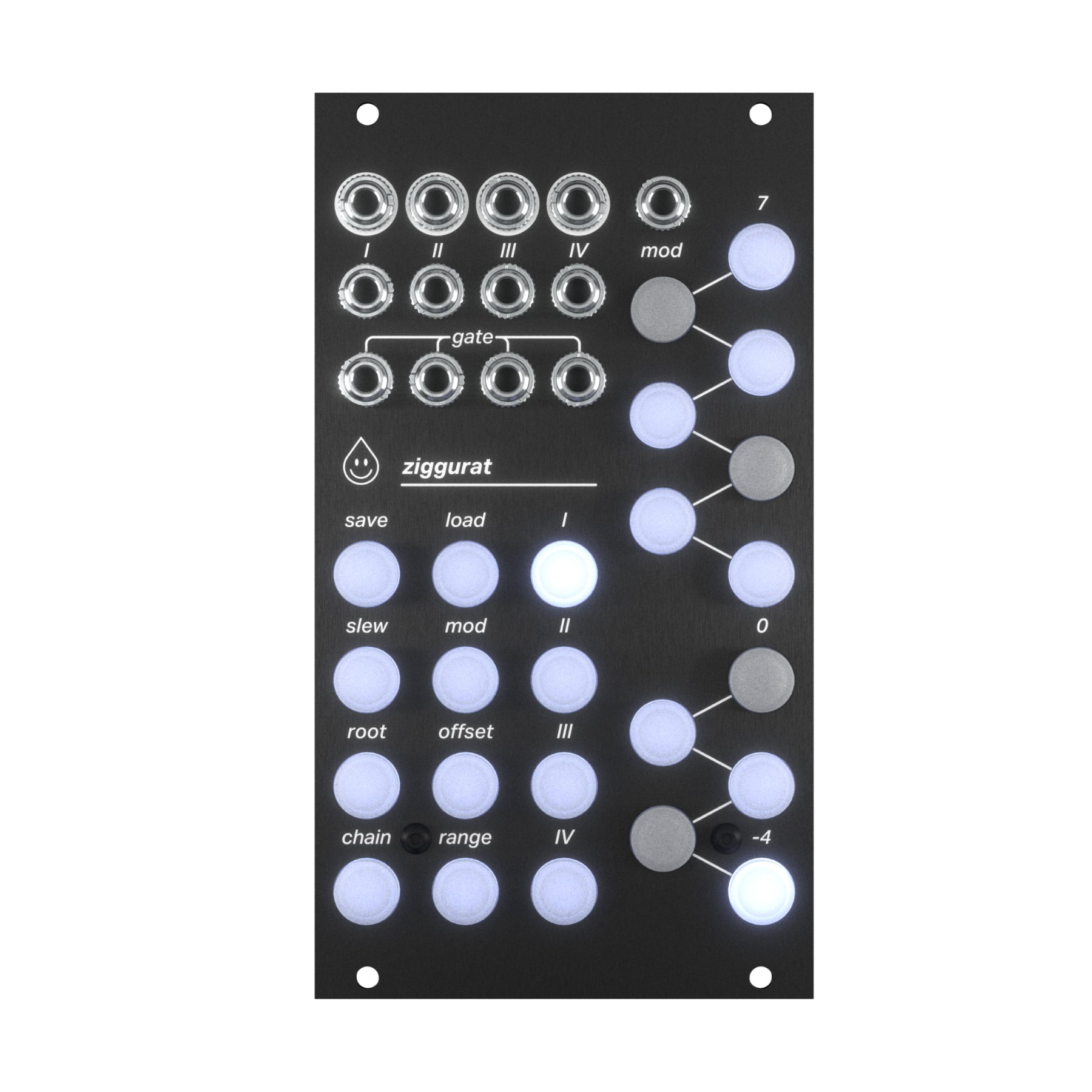

Ziggurat is a 4 channel device designed to turn any combination of control voltages and gates into musical pitch voltages for your eurorack system.
-
- Notes can be turned on and off as desired on the one octave keyboard - creating a custom note mask to quantize through
-
Easily link multiple channels together by holding their buttons down together for 1 second
-
Save + Load - 35 save slots (5 banks of 7) available to store and recall all module settings
-
Slew - apply a slew to any note in your note mask. Adjust the slew time from 0.1 sec to 5 sec
-
Root - Apply a semitone offset to a channel output to change the musical key/root note
-
Offset - Apply a semitone offset before quantization
- Range - adjust the channel output voltage range in octaves from -4V to +8V. Simply press the lower and then upper bound of the range you want
- Chain - enter a series of notes in sequence (like an SH101 sequencer). A gate input will step through them in order, and an input voltage of 0-5V will move through the notes entered in either direction
- Mod - assign the mod CV input to load, slew, root, offset and range to dynamically modulate these channel parameters
- Width: 14HP
- Depth: 25mm
- Power: 90mA @ +12V / 0mA @ -12V
