Regular price CAD$659.00

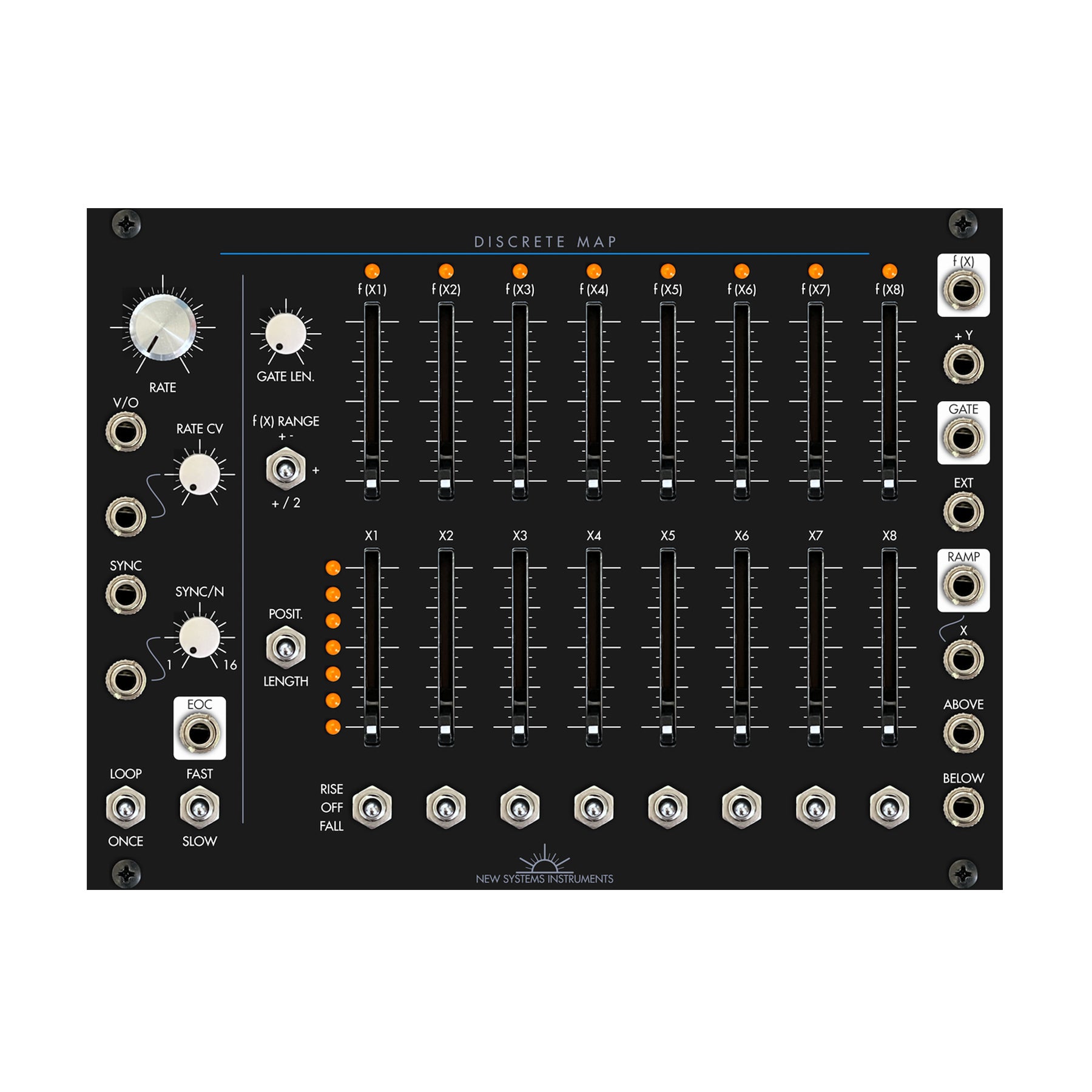

A Continuous-Time Sequencer for Autonomous and Controlled Music.
Discrete Map is designed to integrate sequencing with modular time, the natural motions of your modular system, allowing for new, organic methods of composition, control, and generation. It is designed from the ground up for finer control and more complex synchronizations than a conventional sequencer can produce, and for use in generative autonomous patches.
The lower section sets 8 rising or falling thresholds, and whenever the X input signal crosses those thresholds, the corresponding stage is activated. There is also a second mode for the lower sliders, where the sliders control the relative length between thresholds instead of the absolute position of those thresholds. The upper section controls the f (X) voltage that each
stage produces when that stage is activated. For situations where these thresholds are purely temporal, the internal clock provides a ramp wave as an ideal means to transform time into voltage.
- Width: 34HP
- Depth: 25mm
- Power: 180mA @ +12V / 115mA @ -12V
