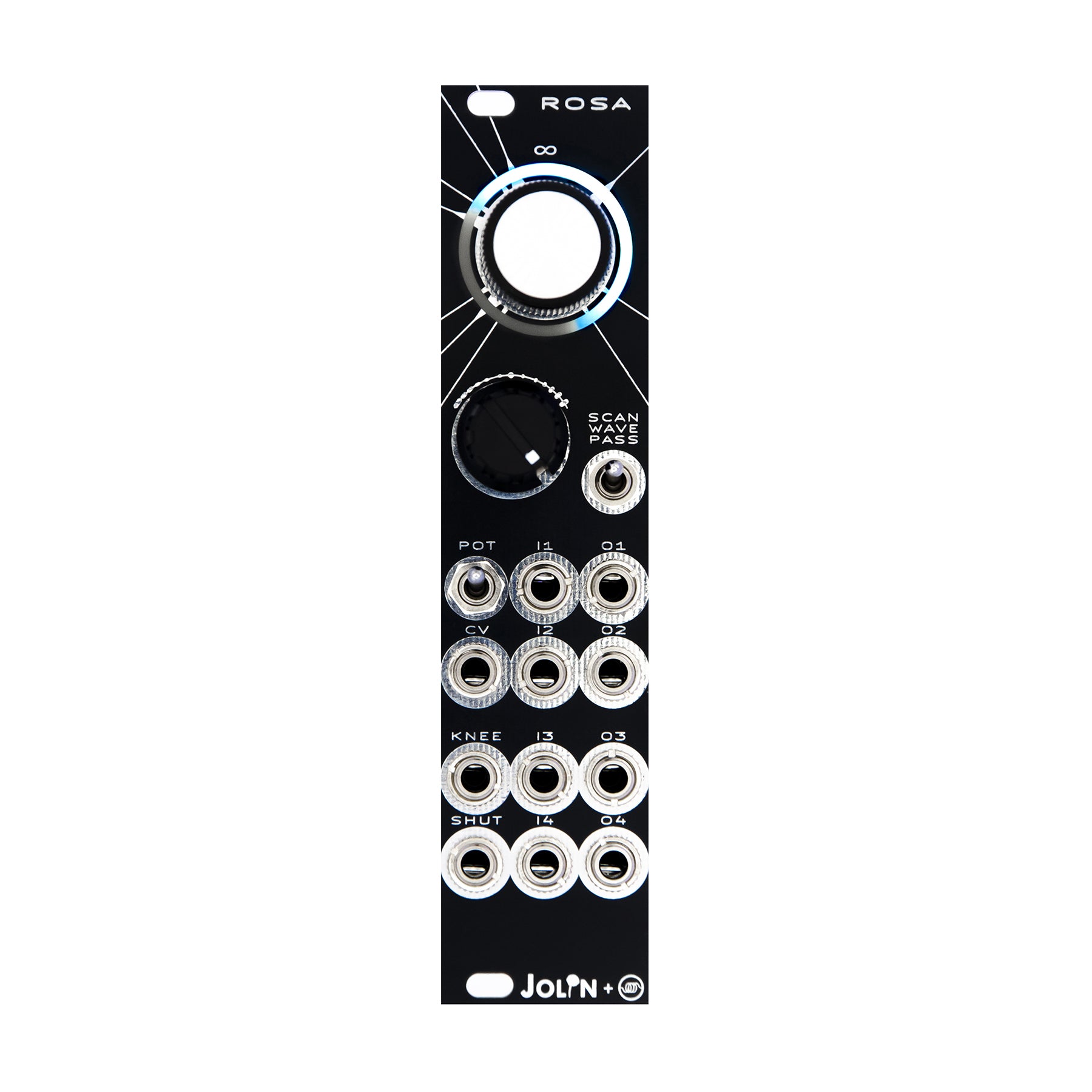

Jolin Lab Rosa [PRE-ORDER]

ROSA is a multi-mode crossfader, scanner, and switcher module designed to morph between up to four inputs and outputs.

why
• To morph smoothly between multiple inputs.
• To route a single input across multiple outputs.
• To modulate signals dynamically with flexible scanning and control.
• To switch between signals or outputs for performance variations.

with
• LFOs and Envelopes: Morph modulation sources across various destinations.
• Audio Sources: Transition between different oscillators, filters, or effects.
• Quadraphonic Systems: Distribute signals across multiple speakers for immersive sound.
• Rhythmic Triggers: Switch between trigger patterns or effects to create evolving sequences.

how
ROSA operates in three distinct modes that allow you to shape and route signals in various ways:
• Scan Mode: In this mode, you can seamlessly morph between up to four inputs. The scanning circuit moves progressively from IN1 to IN4, with the option to loop back to IN1 for continuous transitions. By adjusting the KNEE control, you can choose whether the transitions are smooth and gradual or sharp and instantaneous, making it perfect for creating evolving textures or switching between sounds on the fly.
• Wave Mode: In this configuration, the four VCAs operate independently. Each VCA still follows the same control from the scanning circuit, but they are kept separate. This allows you to modulate four different channels independently, creating complex dynamic changes in your patch.
• Pass Mode: Here, a single input is distributed across up to four outputs. If more than an input is plugged, they will be mixed together. This is ideal for sending the same signal to multiple destinations, like quadraphonic speaker setups or different effects chains. The transition between outputs can be smooth or sharp, giving you full control over how the signal moves between outputs.

The KNEE control shapes how the transitions behave in all modes, letting you switch from soft fades to abrupt jumps, depending on your creative needs.
The SHUT input mutes all VCAs simultaneously, making it ideal for performance control or rhythmic muting. Since the VCAs are linear, amplitude control can be gradual or instantaneous, depending on the nature of the CV input.

• Width: 6HP
• Depth: 30mm
• Power: 120mA @ +12V / 100mA @ -12V
