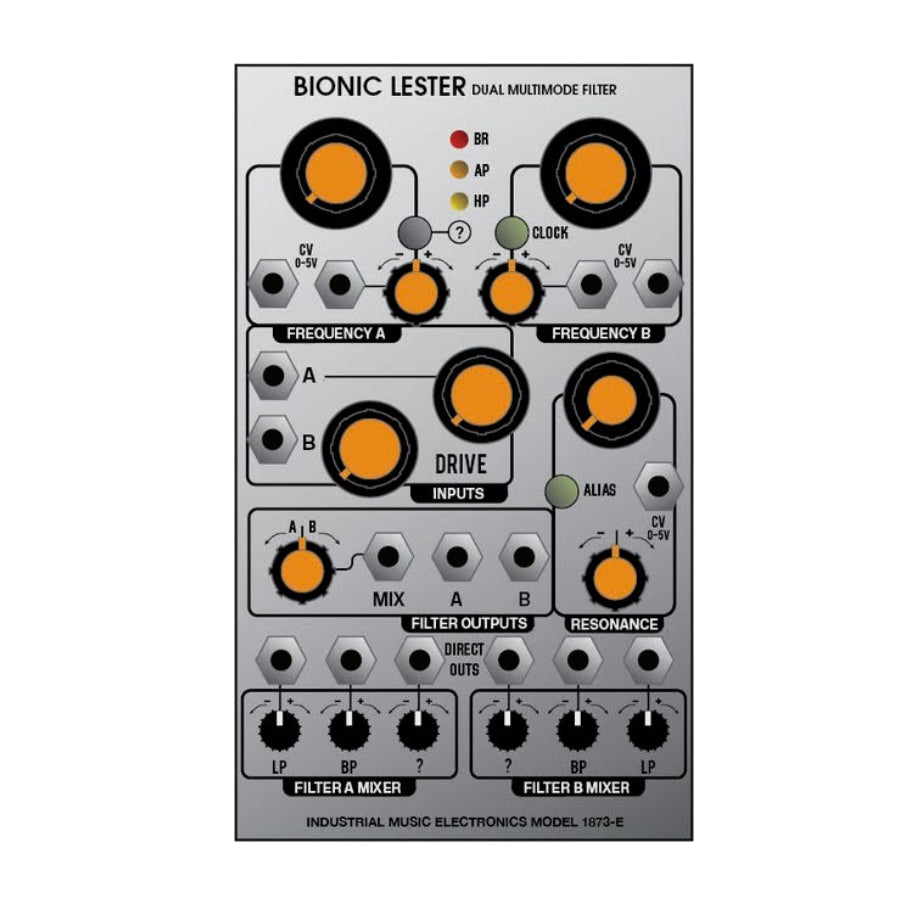

Industrial Music Electronics Bionic Lester Mark 1.5 (Limited Edition) [PRE-ORDER]
Industrial Music Electronics
Regular price CAD$665.00
This module is a special rerelease of the “Mark 1” Bionic Lester circuit with the unreleased “Mark 2” control layout. The Bionic Lester Mark 1 was first released in 2012, and only had one production run. It uses a rare switched-capacitor filter IC with multiple outputs and four operating modes. The character of the overdrive changes with each mode selection and all are distinctive.
DIFFERENCES FROM THE ORIGINAL MODULE:
-
- Reverse power protection
- Metal shaft pots, long life
- ALL of the knobs are MK2 style
- Resistor network and opamp package substitutions for compact PCB layout and greater manufacturability
- Output mixer and A/B crossfader. A feature from the planned but never designed “Aggro Eddie” expander. Enables more elaborate feedback and overdrive patches.
-
Width: 15HP
-
Depth: TBD
- Power: 70mA @ +12V / 45mA @ -12V
