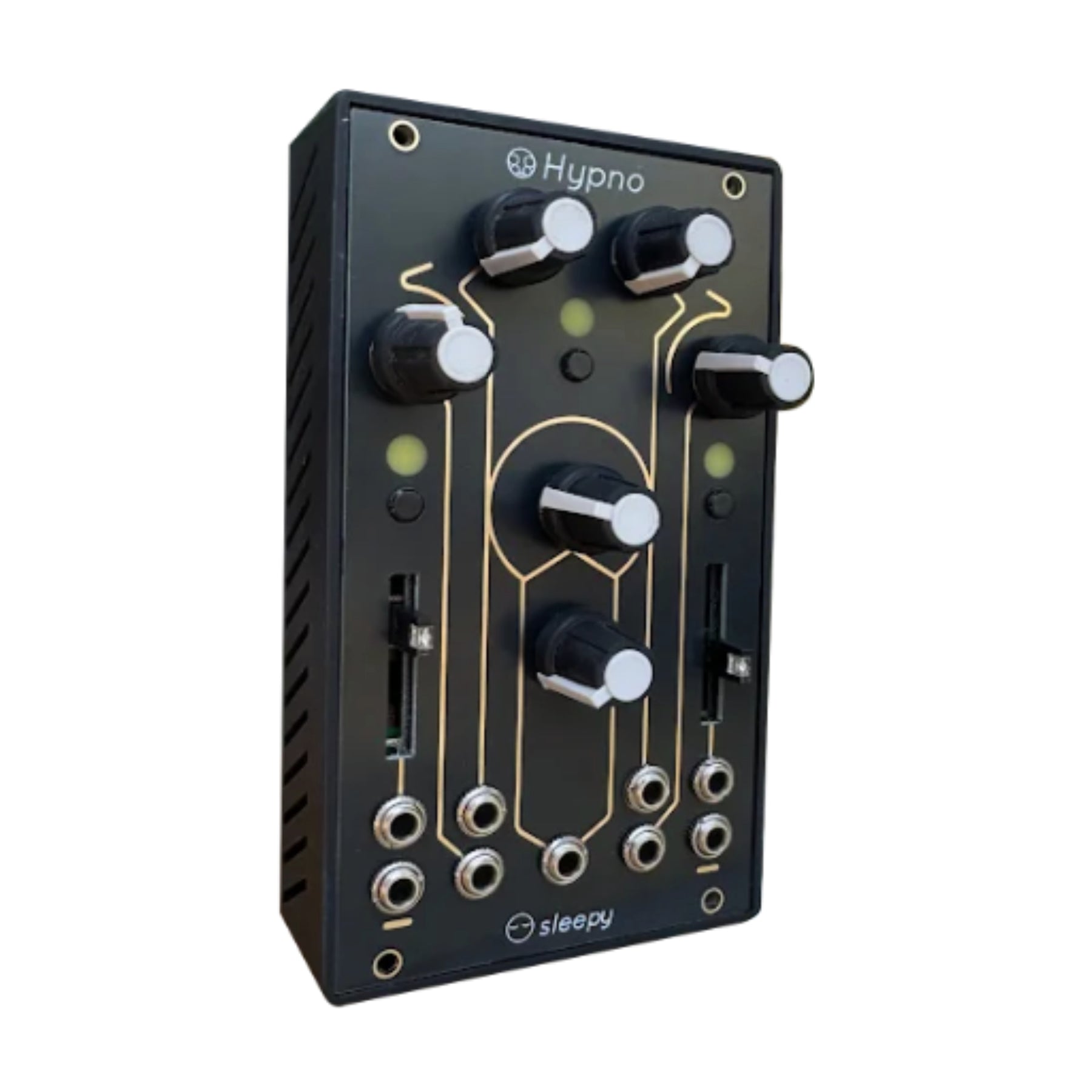

Sleepy Circuits Hypno (Classic) [PRE-ORDER]

The Hypno is inspired by analog video systems. It digitally emulates and extends common analog video workflows that previously required whole systems to achieve, with shape generation, colorization, feedback and the ability to patch these elements in a simple compact interface. Since launch we have added live video processing, looping MP4 videos and more to make Hypno the ultimate digital video dream machine.

Software

• 2 Oscillators with selectable shapes, frequency, rotation and polarization

• 4 feedback Modes with Positive and Negative Gain

• Palette OKLab Colorizer (Perceptually Uniform for smooth transitions)

• CV Control-able (common Eurorack 5V to -5V signal range)

• MIDI Host

• Internal Patching Matrix

• Per-OSC Internal Modulations for Scrolling, Rotation, Polarization, Fractal Axis

• Per-OSC Fractal-ing control

• Luma Keying, Cropping and Aspect Stretching

Hardware & I/O

• HDMI Standard Definition (720x480 or below base on screen aspect ratio and model, 720x480 EDID display recommended)

• Composite Output available (w/ additional hardware adapters) via Pi3/4 headphone jack (PAL or NTSC)

• MP4 Video Looping off of USB stick (Built-in Folder Navigation UI)

• UVC Webcam and Capture-Card video input and processing

• 4 Core Internal Processor

• Power via USB-C

• I/O: USB hub, Ethernet (may vary based on pi supplied by user)

• Wireless Networking: WiFi, Bluetooth, U.FL antenna slot (may vary based on pi supplied by user)
