Pittsburgh Modular Lifeforms SV-2 [PRE-ORDER]

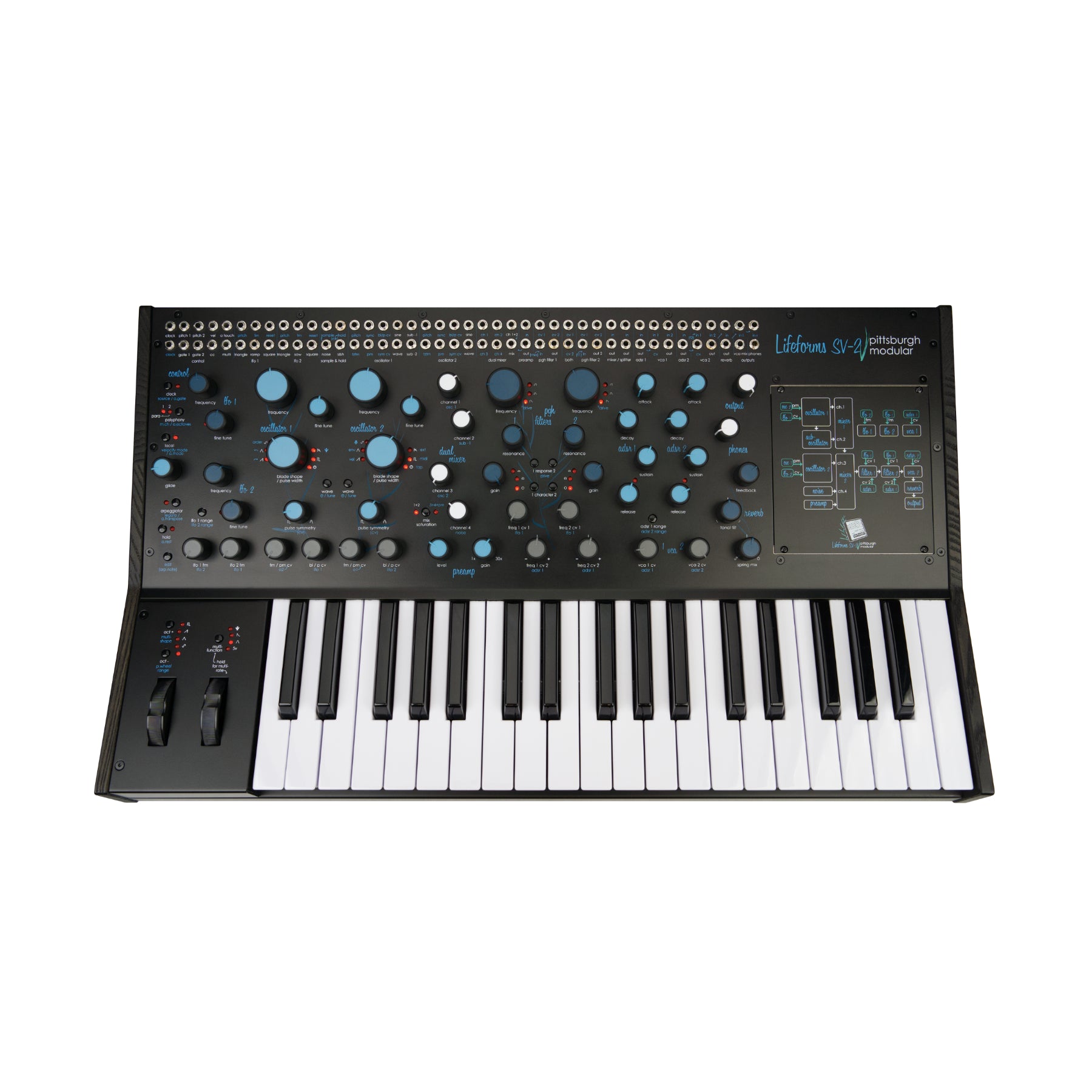

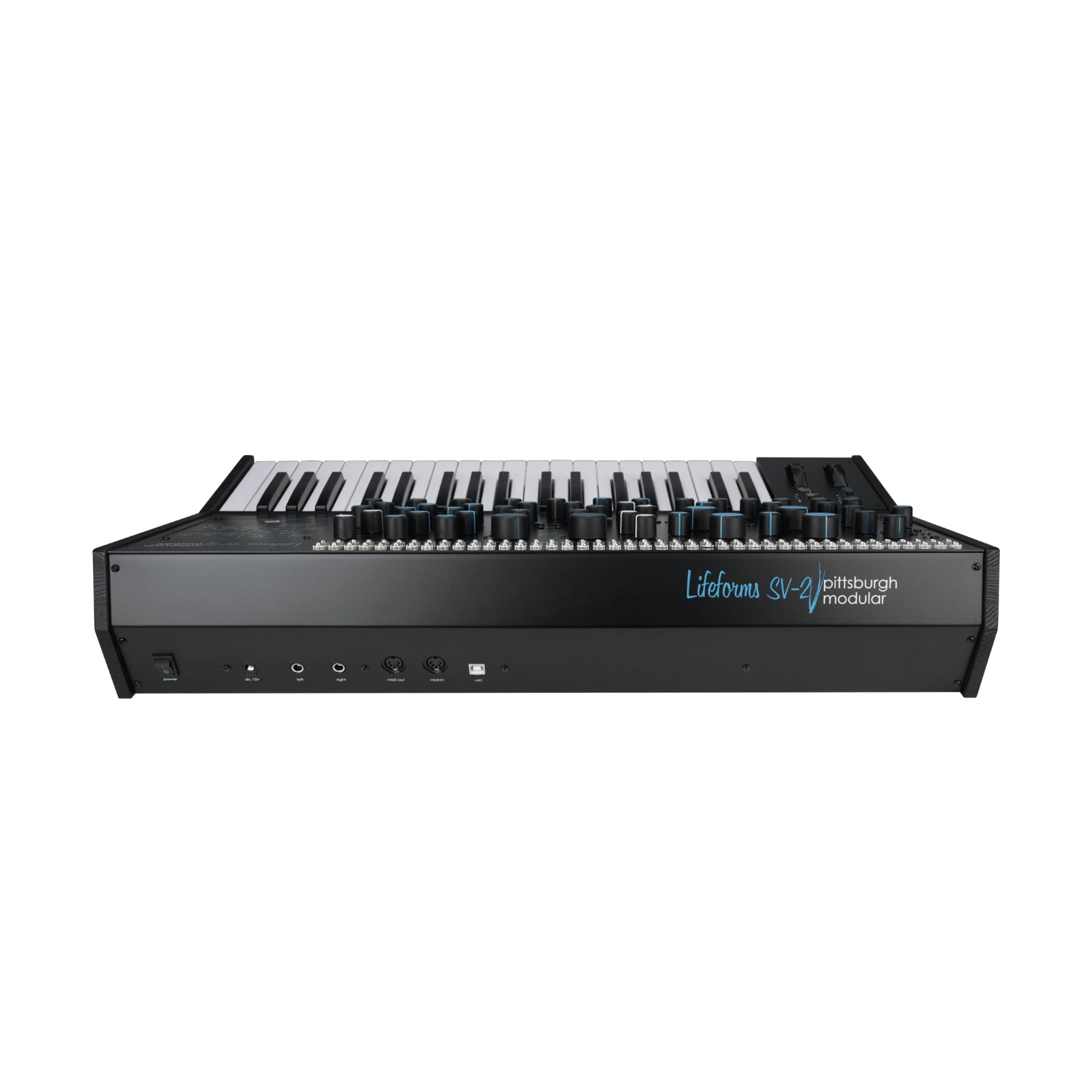

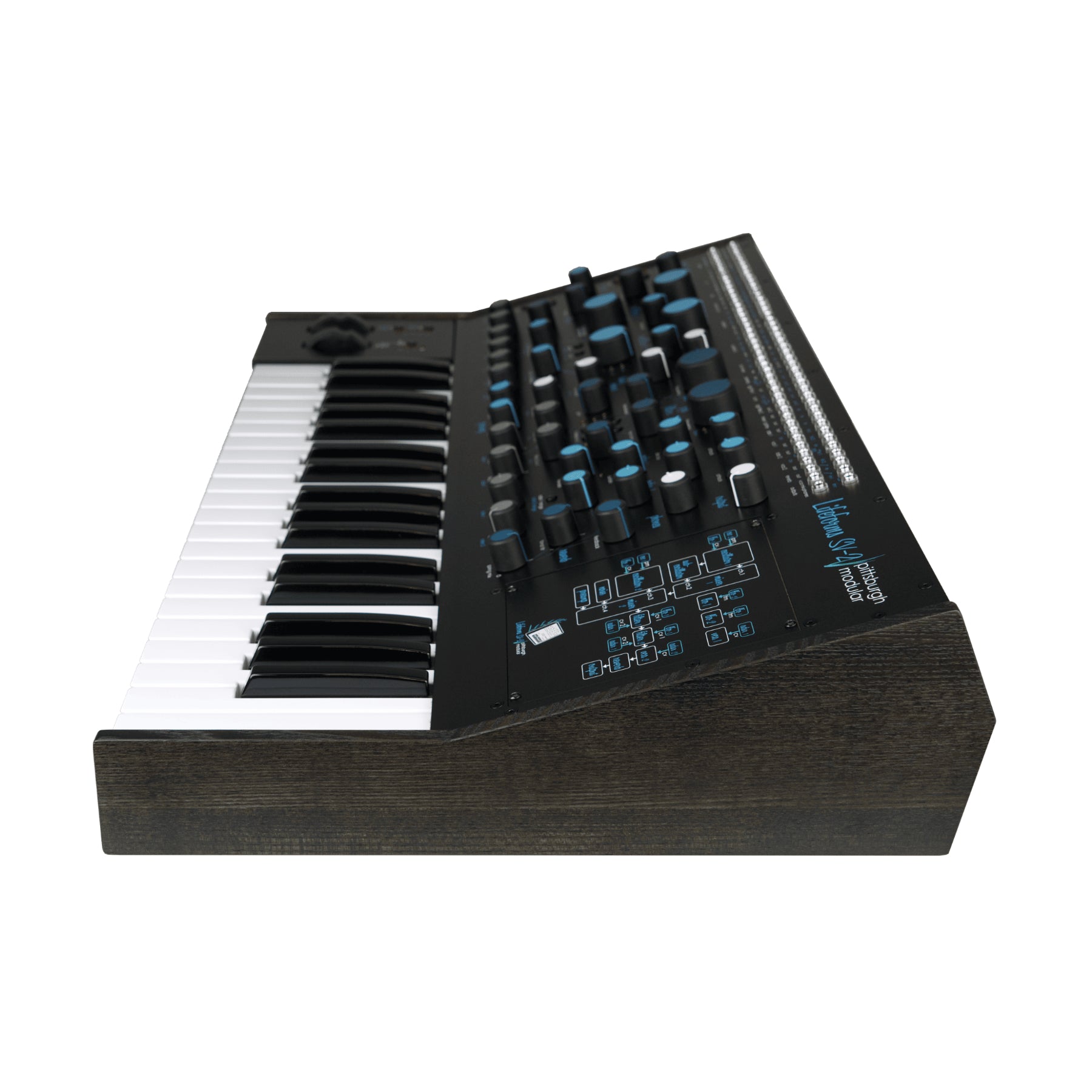

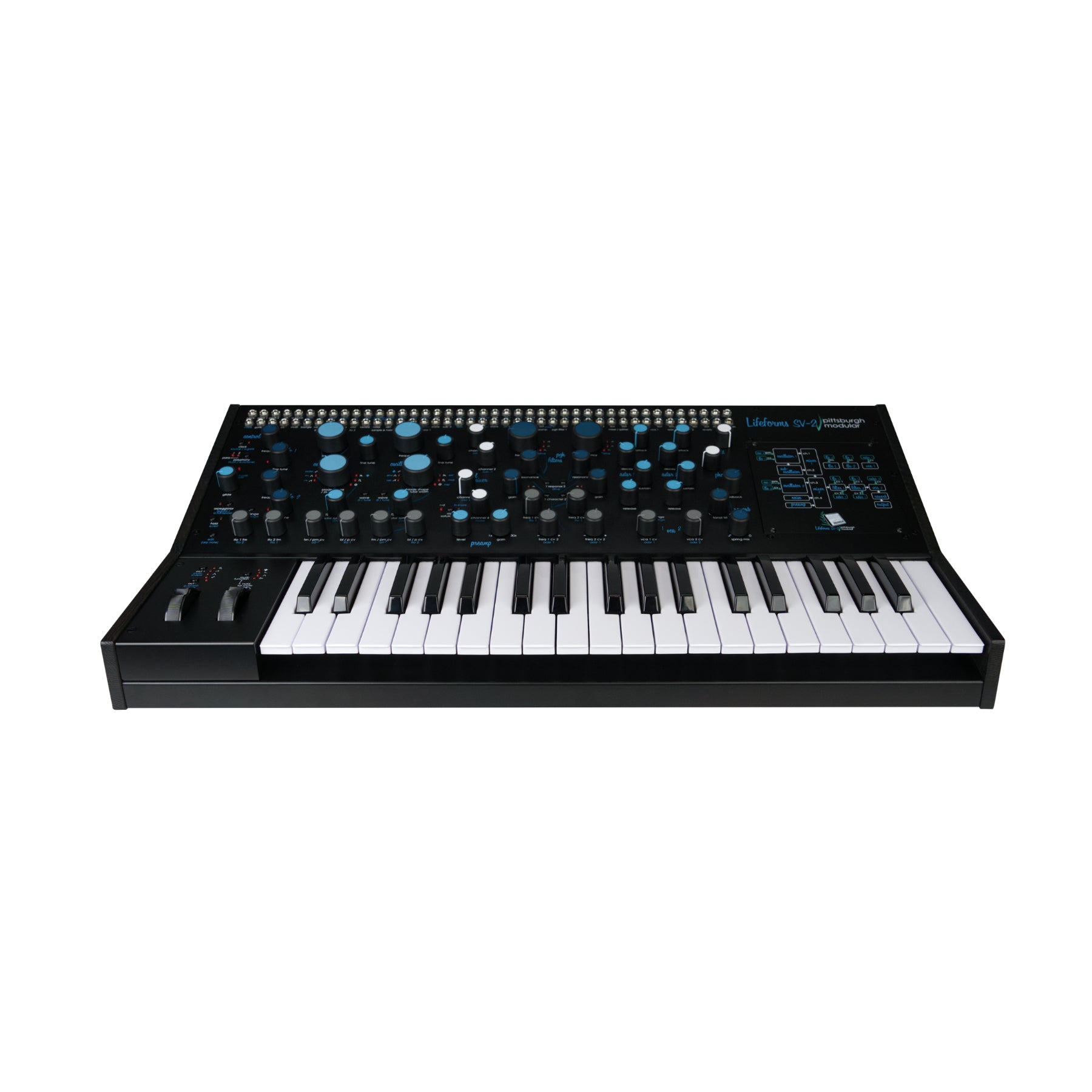

The Pittsburgh Modular Lifeforms SV-2 is a powerful semi-modular analog synthesizer that combines the character of classic analog synthesis with modern sound-design capabilities. With four oscillators, two classic Pittsburgh filters, extensive modulation options, built-in effects, and a 37-key keyboard, the SV-2 offers a huge sonic range straight out of the box.

Two newly developed Thru-Zero triangle-core oscillators, Blade and Pulse Symmetry waveforms, Thru-Zero FM, phase modulation, and linear FM provide everything from classic analog tones to complex and experimental textures.

The SV-2 features two ADSR envelopes, two VCAs, a versatile arpeggiator, Sample & Hold, and a spring reverb with Tonal Tilt EQ and adjustable feedback. Six saturation and overdrive stages add anything from subtle warmth to aggressive analog distortion.

With its 84-point patch bay and 24 HP Eurorack expansion area, the SV-2 can be easily integrated into a modular setup and offers virtually unlimited possibilities for creative sound design.

Reimagined to the Core

Balancing the character of old school "East Coast" synths with modern possibilities, the Lifeforms SV-2 reimagines the classic analog signal chain by building on the foundations of the past. The result is an instrument that offers the organic warmth and power of vintage analog alongside the expanded creative potential of modern ideas.

We have redesigned our oscillator core to include Thru-zero FM and Phase Modulation. This allows the new triangle core oscillator to stay in tune even under extreme frequency modulation. To further expand the sound palette, our Pulse Symmetry waveform adds a second “vertical” dimension of modulation to pulse waves, enabling deeper and more evolving textures than standard pulse width modulation. Additionally, our proprietary Blade Wave creates a sawtooth variant that offers a dense, natural chorus effect through the manipulation of harmonic content.

Oscillator Details

• Two Thru-Zero Triangle Core Oscillators with Pulse Symmetry, Blade, Sine, Triangle, Saw, and Random waveforms, On Demand Tuning, Thru-Zero FM, Phase Modulation, Linear FM, and Hard Sync.
• Two voltage controlled Triangle Core LFOs with Triangle, Saw, and Square waveforms, Linear FM, Reset, High/Low Range Modes to cover low frequency and audio rate modulation. LFOs can also be used as a 3rd or 4th audio oscillator for very big sounds.
• Square wave Sub-Oscillator with -1 and -2 octave outputs.
• Analog White Noise

Alive with Character

The Pittsburgh Filter is a critically acclaimed state-variable, multimode analog filter engineered to provide buttery smooth consistency across the frequency spectrum. Its architecture ensures that signal amplitude and harmonic warmth remain stable throughout the entire sweep, effectively eliminating the "dead spots" often found in traditional designs.

While the foundation of the Pittsburgh sound is built on precision and clarity, the Lifeforms SV-2 introduces a pair of unique Character modes and customized Overdrive to meet the demand for vintage-inspired grit and harmonic saturation. The Character modes recontextualize legacy signal-processing techniques to dynamically reshape the filtered waveforms. These modes are further enhanced by an integrated overdrive circuit designed to transition seamlessly from subtle thermal warmth to high-gain harmonic destruction. By combining these advanced processing tools, the SV-2 offers a comprehensive ecosystem for sophisticated sound sculpting, ranging from pristine analog textures to raw, industrial intensity.

Filter Details

• Two Classic Pittsburgh Filters extended with Character Modes and Overdrive
• State Variable Filter Core with Highpass, Bandpass, Lowpass, Combo, and Random filter responses.
• Warped Character Mode modifies the shape of a waveform without modifying harmonic content.
• Warped and Rectified Mode further changes the shape of a waveform by slicing the warped wave in half and rebuilding it based on the remaining wave. This has a vastly different effect on each waveform. (Sine to double frequency sine, triangle to double frequency triangle, Saw to Triangle, varied Symmetry Pulse response.
• Variable overdrive offers up to 5x boost or 15db of gain.
• Dual Cutoff Frequency Modulation inputs for flexible, complex filter modulation

Overdrive Injection

Harmonic saturation and overdrive are fundamental elements in defining the character and physical presence of an analog signal. While saturation provides a subtle enhancement of depth and structural weight, overdrive offers a more assertive application of harmonic power and sonic authority. The Lifeforms SV-2 integrates these essential processing capabilities directly into its personality, featuring six independent saturation and overdrive stages strategically distributed throughout the signal path. This comprehensive design allows for granular control over the harmonic profile of a sound, enabling precise sculpting from transparent warmth to aggressive distortion at multiple points in the synthesis chain.

Saturation and Overdrive Details

• The Dual Mixer has twin switchable saturation points to add warmth and soft compression to incoming waves.
• Variable Preamp offers up to 30x boost or 28db of gain
• A pair of Pre-Filter variable overdrives each offer up to 5x boost or 15db of gain.
• A saturation circuit in the spring Reverb leans into the vintage vibes of subtle distortion and heat.

More Sound Shaping Technology Pushing Lifeforms SV-2 Deeper Into Unexplored Worlds

Pittsburgh Modular remains dedicated to moving analog forward, deliberately pushing beyond historical emulation to redefine the future of analog synthesis. The Lifeforms SV-2 embodies this philosophy, incorporating a suite of advanced synthesis utilities across every stage of its signal path. By fusing contemporary functional refinements with a classic analog architecture, the Lifeforms SV-2 broadens the creative scope of the semi-modular ecosystem. This instrument represents our commitment to analog innovation by creating a new universe of musical expression and exploration.

Synthesis Tools Details

• Monophonic, one button Paraphonic, and patchable Full Duophonic voicing.
• Complex Arpeggiator with multiple responses, octaves, random, and more.
• Dual Mixer with Saturation works as a 5 channel Mixer, 4 channel Mixer with independent Preamp, independent 2 channel and 3 channel Mixers, A pair of independent 2 channel Mixers and independent Preamp.
• Fully patchable Sample and Hold with analog White Noise.
• Patchable 2 channel audio or CV Mixer / Signal Splitter tool.
• Dual analog ADSR Envelope Generators featuring new response curves and 2 range Modes. short and plucky or long and relaxed.
• Dual independent VCAs.
• Spring Reverb with custom Tonal Tilt EQ shaper, controlled feedback up to self-oscillation, and Preamp Saturation.
• Custom designed 37 key keybed with Pitch and Mod Wheels provides a responsive, vintage synthesizer feel.
• Digital Modulation Tool with manual control, clock-sync’d LFO, Decay Envelope, and Random Level controllers.
• 24hp Eurorack Expansion Bay with 3 Power headers and a 84 point patch bay allow Eurorack modules to be integrated at any point of the signal path.
