Regular price CAD$279.00

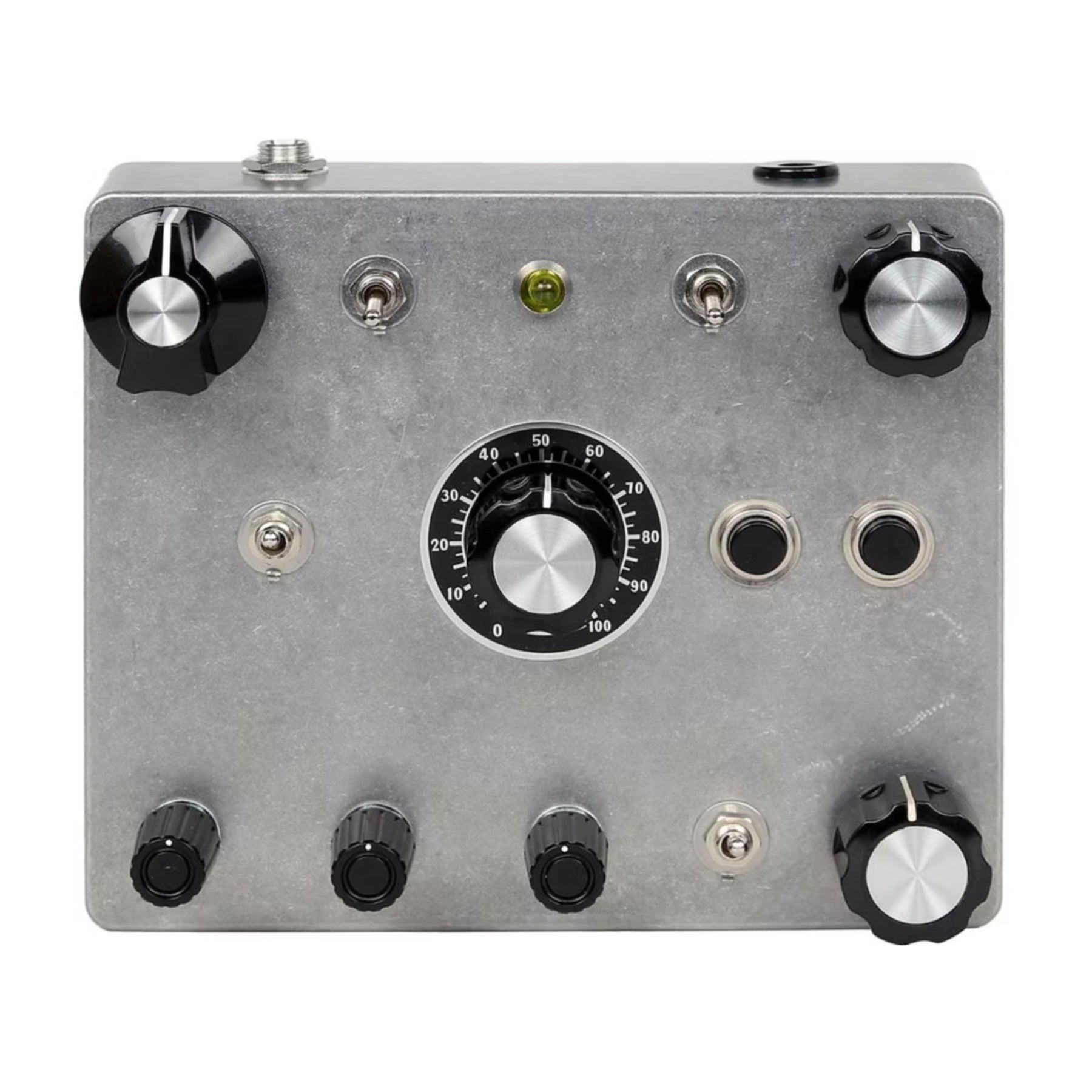

This is an analog synthesizer features a noise generator and a function that creates irregular modulation patterns which can be fed into the VCO (oscillator).
The WAVE 1 and 2 knobs generate modulation that is fed into the SUB oscillator. Turning the STAB knob to the left introduces increasingly irregular movement into the WAVE function.
The SUB ON/OFF switch toggles the input to the MAIN VCO.
Additionally, the SUB REDUCE button gradually decreases the intensity of this function to zero while held down, altering the resulting effect during that time.
Similarly, the MAIN FREQ REDUCE button gradually decreases the power of the MAIN VCO to zero only while it is being pressed.
Activating the NOISE switch feeds noise into the MAIN VCO; the character of the noise effect varies depending on the MAIN VCO's frequency setting.
The main VCO can be controlled with FREQ. and VCO reduce button.
Sub oscillator and Noise generator go to the main VCO with those switches.
It is powered by either a 9V DC center-negative adapter or a single 9V battery.
