Endorphin.es LINK25 [PRE-ORDER]

Endorphin.es introduces LINK 25: a passive, bi-directional eight-channel bridge between Eurorack and analog TASCAM/AES59 DB25 studio connections. It replaces eight separate long patch cables with one secure multicore connection.

LINK 25 can record individual modular stems, feed performance mixers such as PLAYdifferently MODEL 1 and MODEL 1.4, return line outputs from a DAW or audio interface to Eurorack, create a parallel live-and-recording path, or connect two Eurorack cases.

All eight 3.5 mm TS channels are independent and can be used as eight mono paths or four stereo pairs. The signal path is completely passive, requires no power and includes a matched 2.2 kΩ network with per-channel RF filtering for practical studio and stage integration.

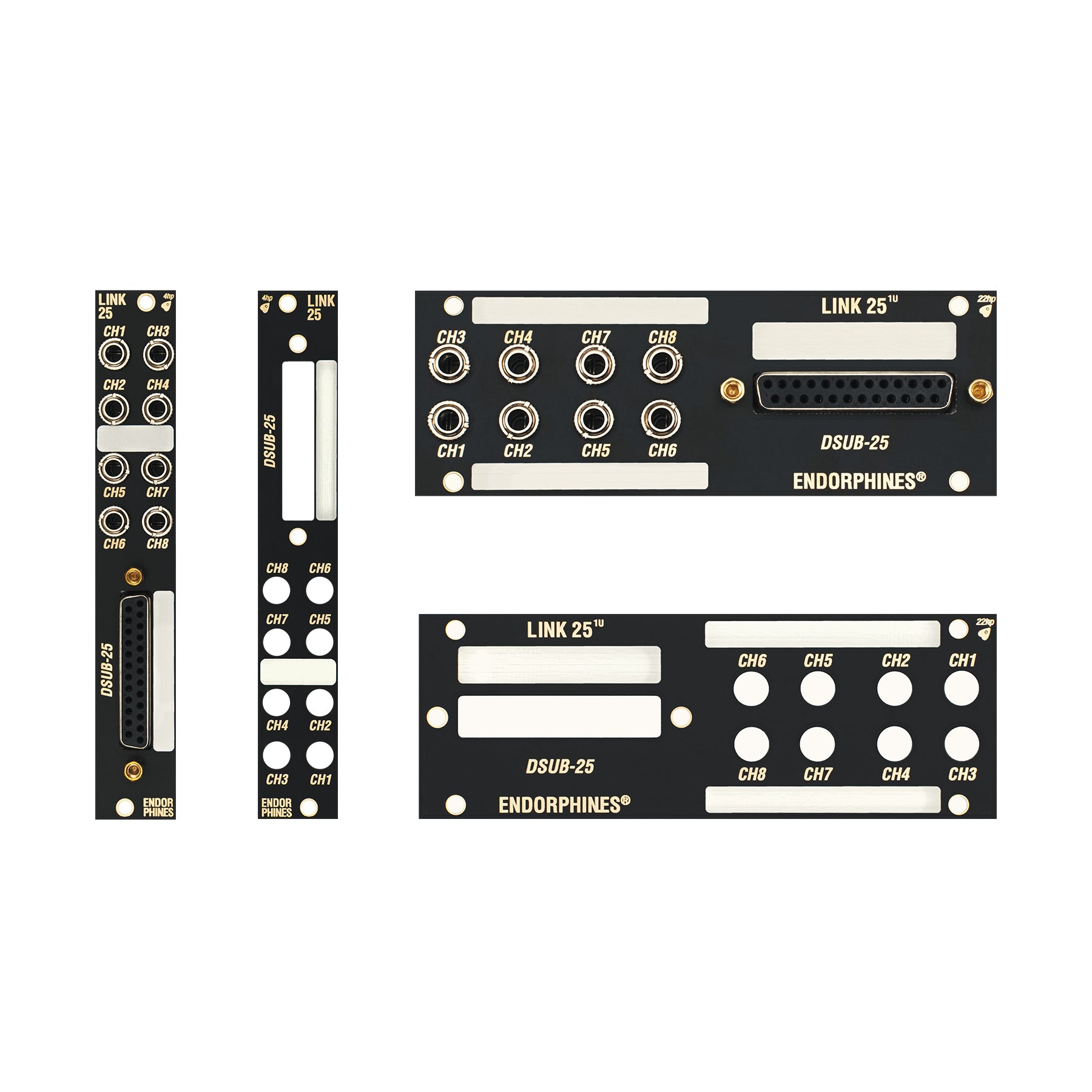

ONE MODULE, TWO PANEL FORMATS

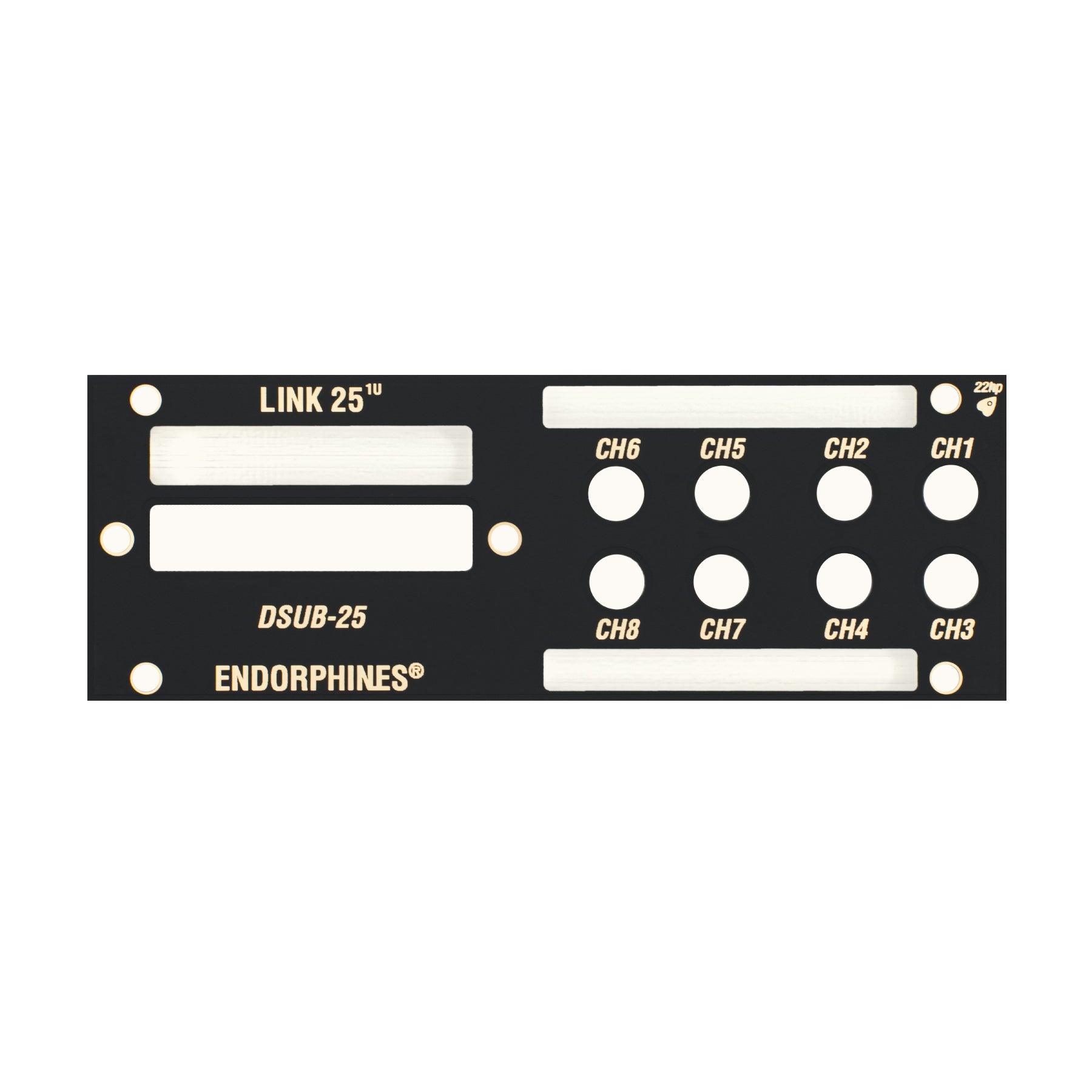

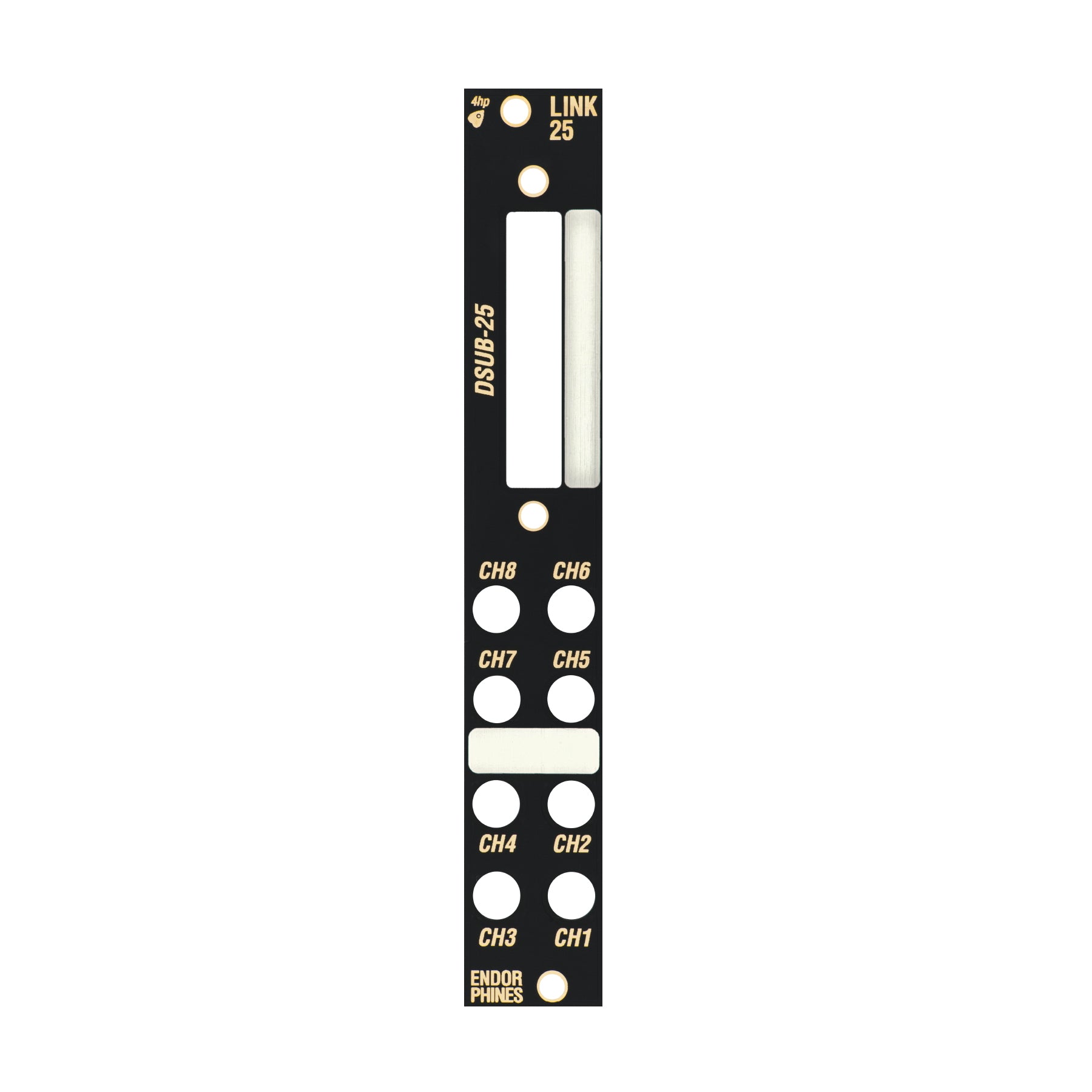

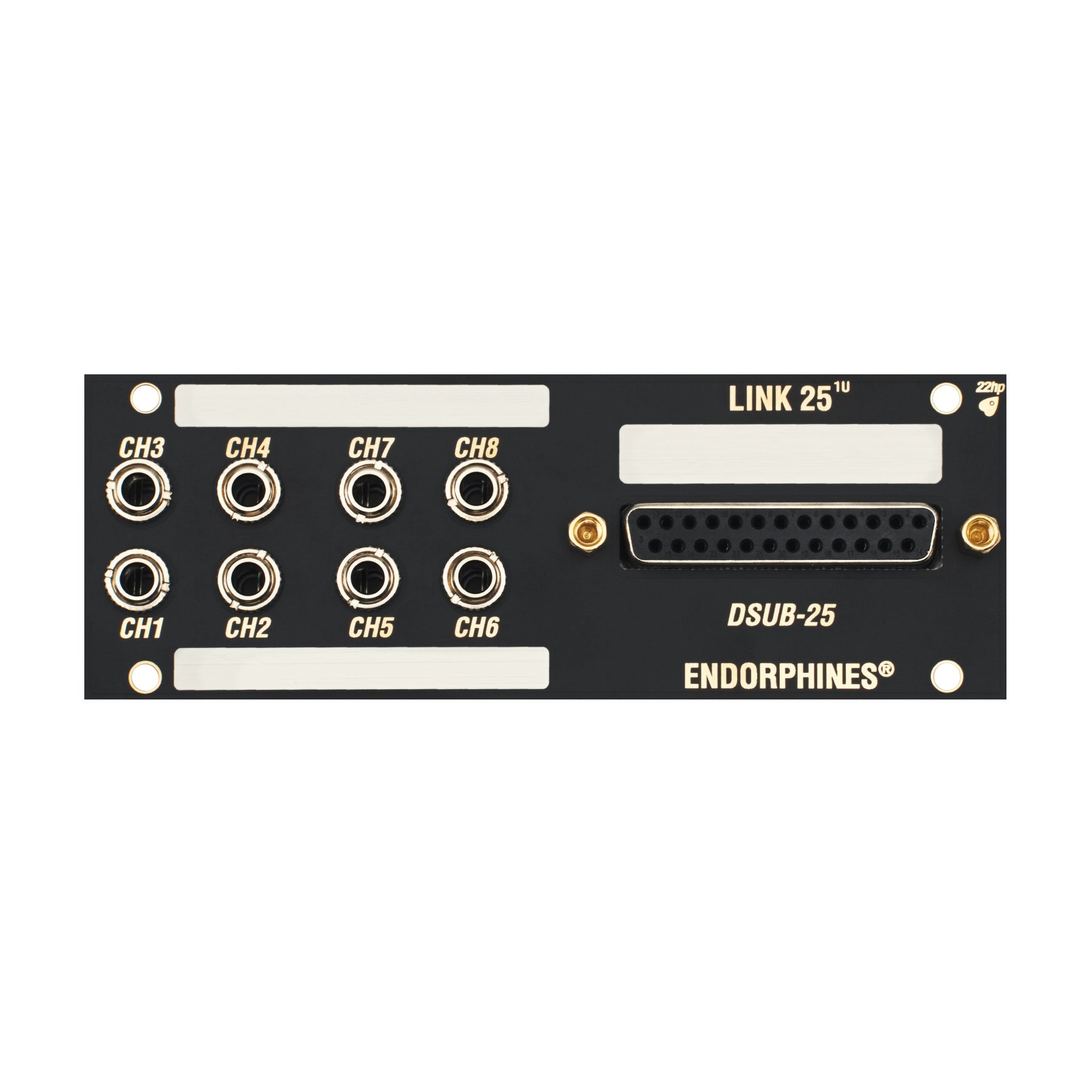

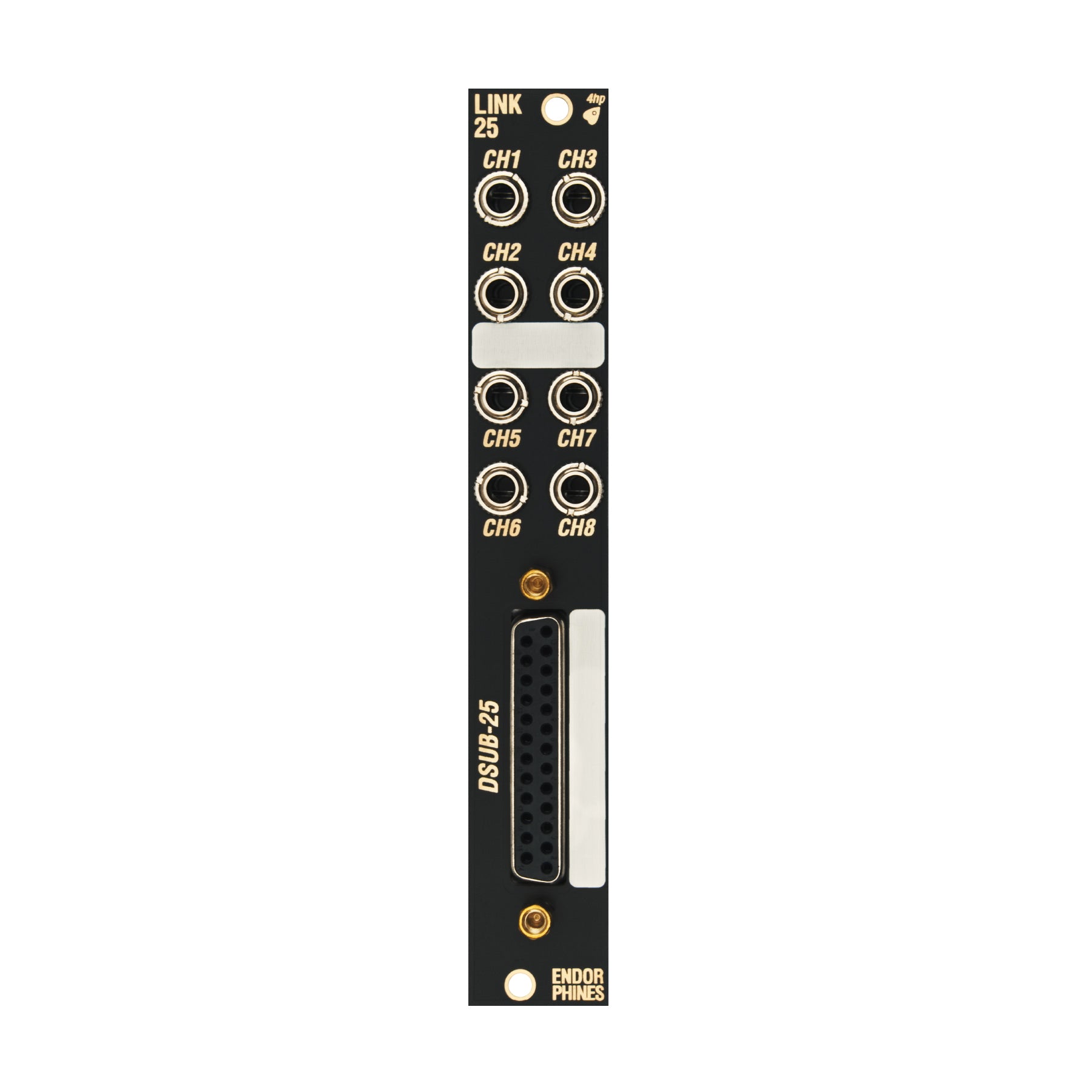

A reversible 4HP 3U panel is installed at the factory, while a reversible 22HP Intellijel 1U panel is included in the box. Both matte PCB panels are printed on two sides, allowing the DB-25 cable to exit up/down in 3U or left/right in 1U while labels remain upright. Writable areas identify channels and destinations, and 12.7 mm stereo-pair spacing supports the Endorphin.es Airline adapter and compatible TRS-to-dual-TS splitters.

• DB-25 cable and Airline audio jack adapter are not included

• LINK 25 requires no power and draws 0 mA. There is no Eurorack ribbon cable or power connector needed

• Width: 4HP/3U  or 22HP/1U (both panels included)
• Depth: TBD

• Power: 0mA @ +12V / 0mA @ -12V (Passive)
