Regular price CAD$528.00

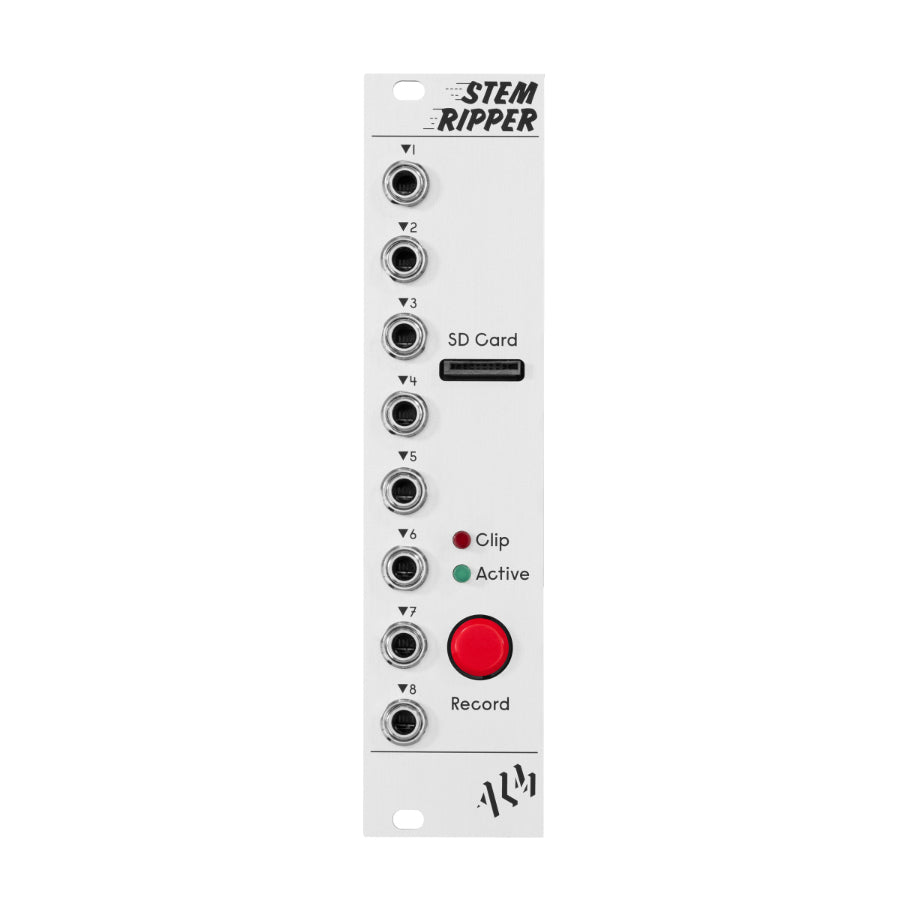

The Stem Ripper is a compact 8 channel audio recorder designed for immediate full patch recording without the need for external hardware. Capture all audio stems of a patch with ease.
Patch stems are recorded directly to a micro SD card which can then be easily transferred to a computer to mix, edit or archive patches. Each input is recorded as an individual track in a 16bit 44.1kHzmultichannel date stamped WAV file. Record time is limited only by SD Card size.
Two additional tracks within the output WAV contain a configurable stereo mix down of the inputs. The module has large 20Vpp per input headroom with LED clip indication if exceeded.
An optional 2HP ’Thru’ output expander duplicates the 8 inputs to a row of unbuffered out-puts, eliminating the potential need for stacking patch cables at the expense of more case real estate. A suitable 64Gb SD card is included with the unit.
- Width: 6HP
- Depth: 32mm
- Power: 150mA @ +12V / 20mA @ -12V
