Regular price CAD$505.00

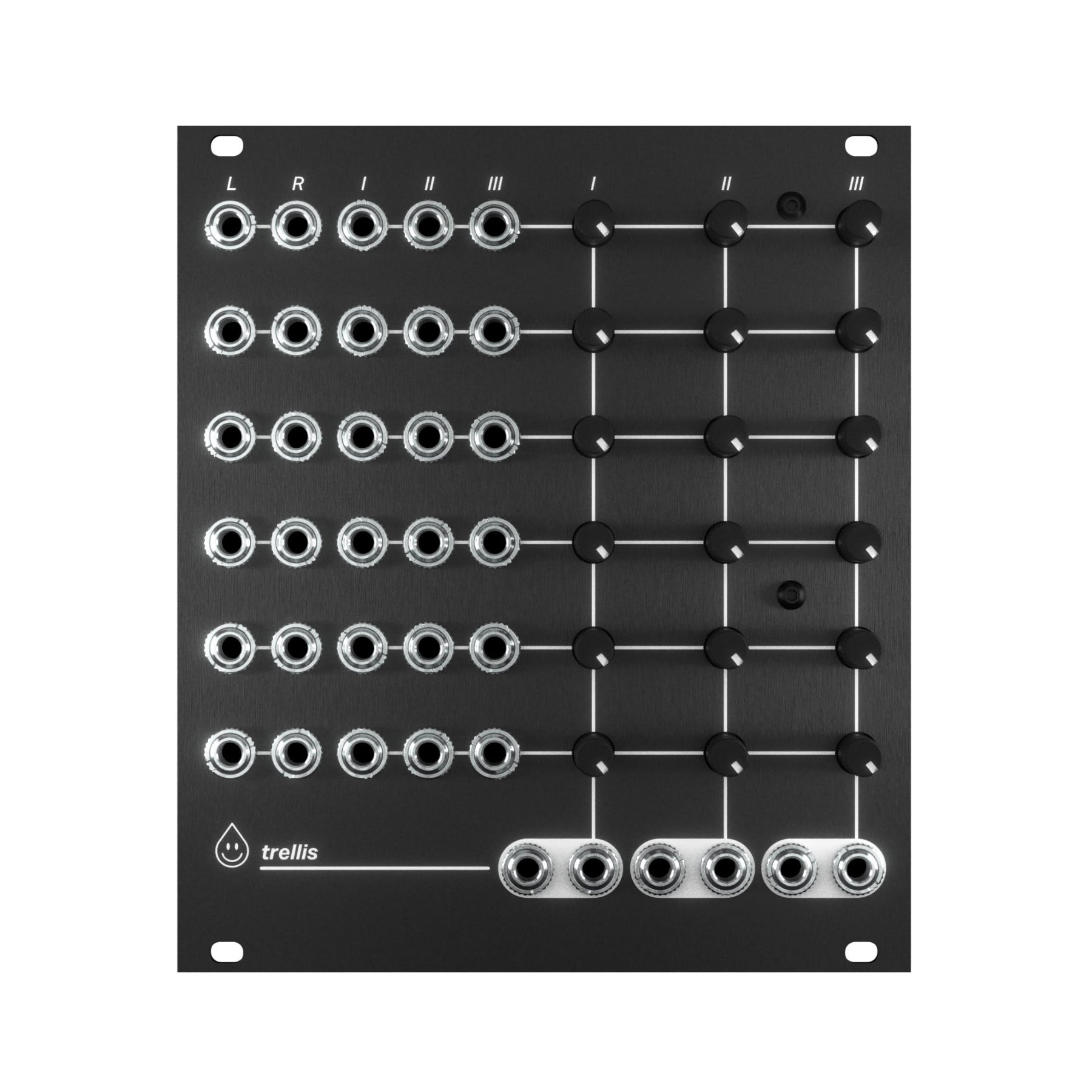

Trellis is a 6 stereo input, 3 stereo output matrix mixer. Mono sources can be patched into the left input and are normalized to the right input if no cable is patched into the right. 0V - 5V CV control over the level of all points in the matrix (36 VCAs!) Trimmer gain knobs to set maximum level for all points in the matrix - CV moves within this maximum range set by the knob. Outputs unity mix to mono on the right output if no cable is patched into the left output
- Width: 22HP
- Depth: 25mm
- Power: TBD
