ADDAC System ADDAC005 CV 2 Expression [PRE-ORDER]
ADDAC System
Regular price CAD$125.00
ADDAC005 CV to Expression allows a simple and straight forward connection between modular and effects pedals that features expression pedal TRS inputs.
Instead of using an expression pedal into the effects pedal the user can use this device in between a CV source and the Effects pedal to be controlled.
This is a great way to control the available parameters on the effects pedals straight from a CV source.

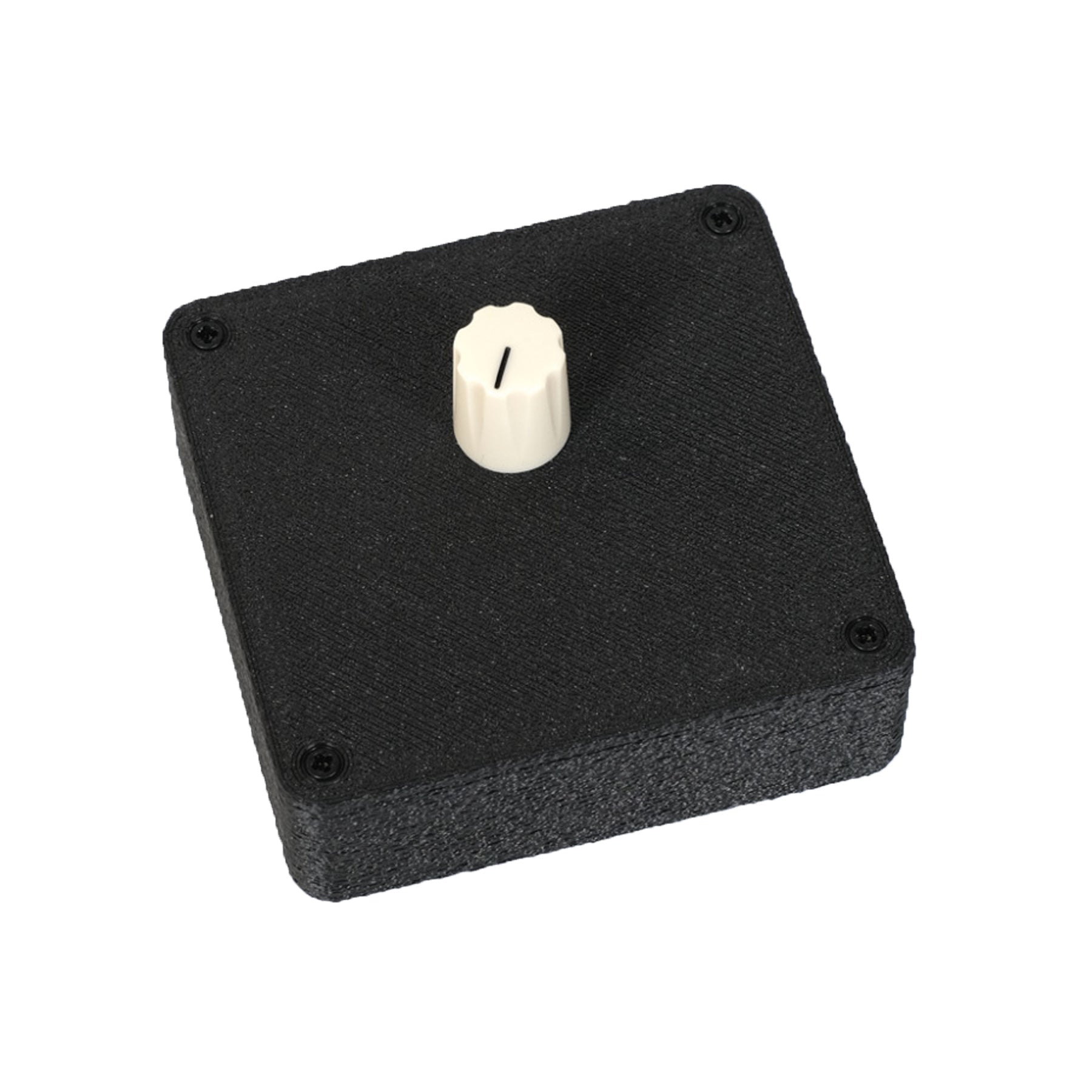

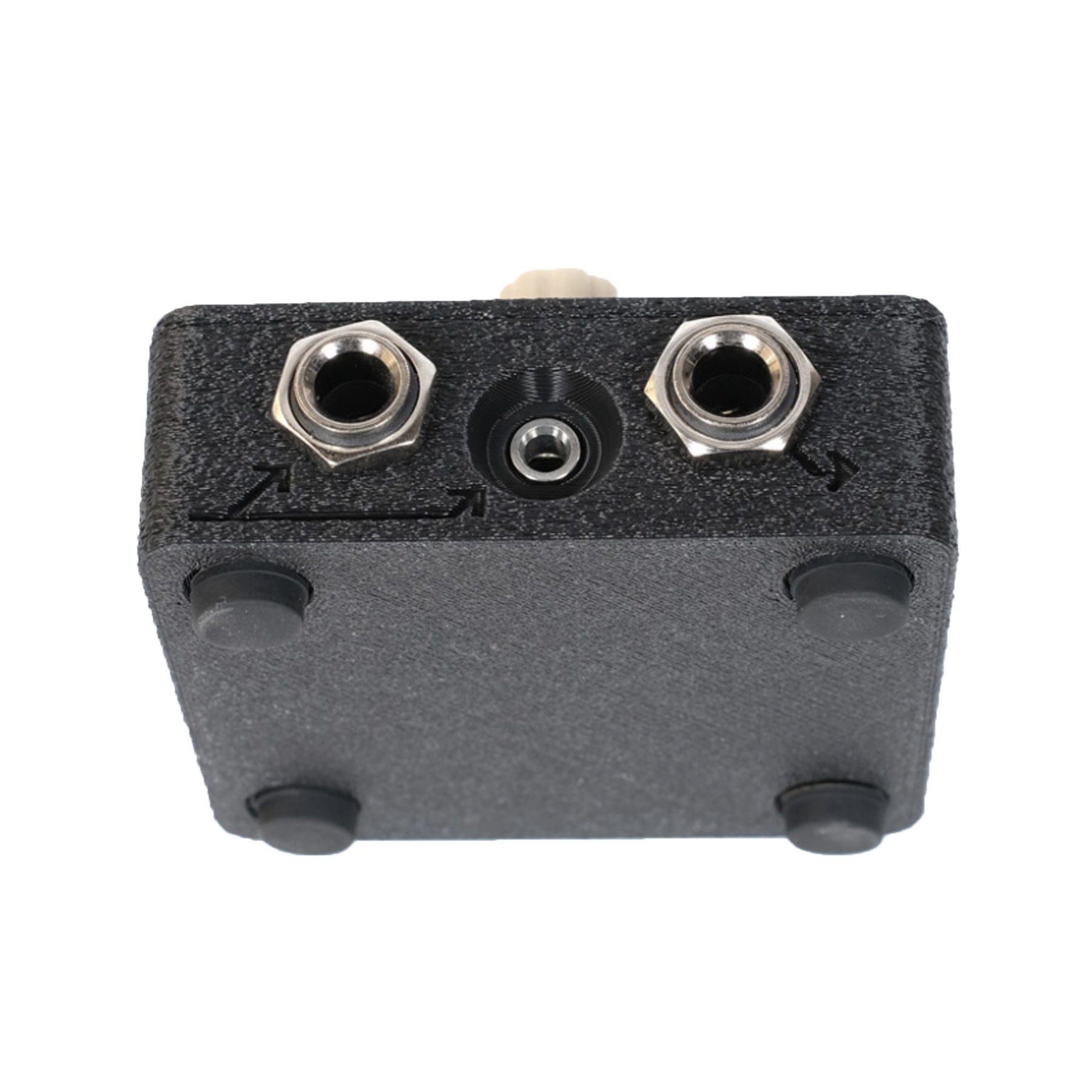

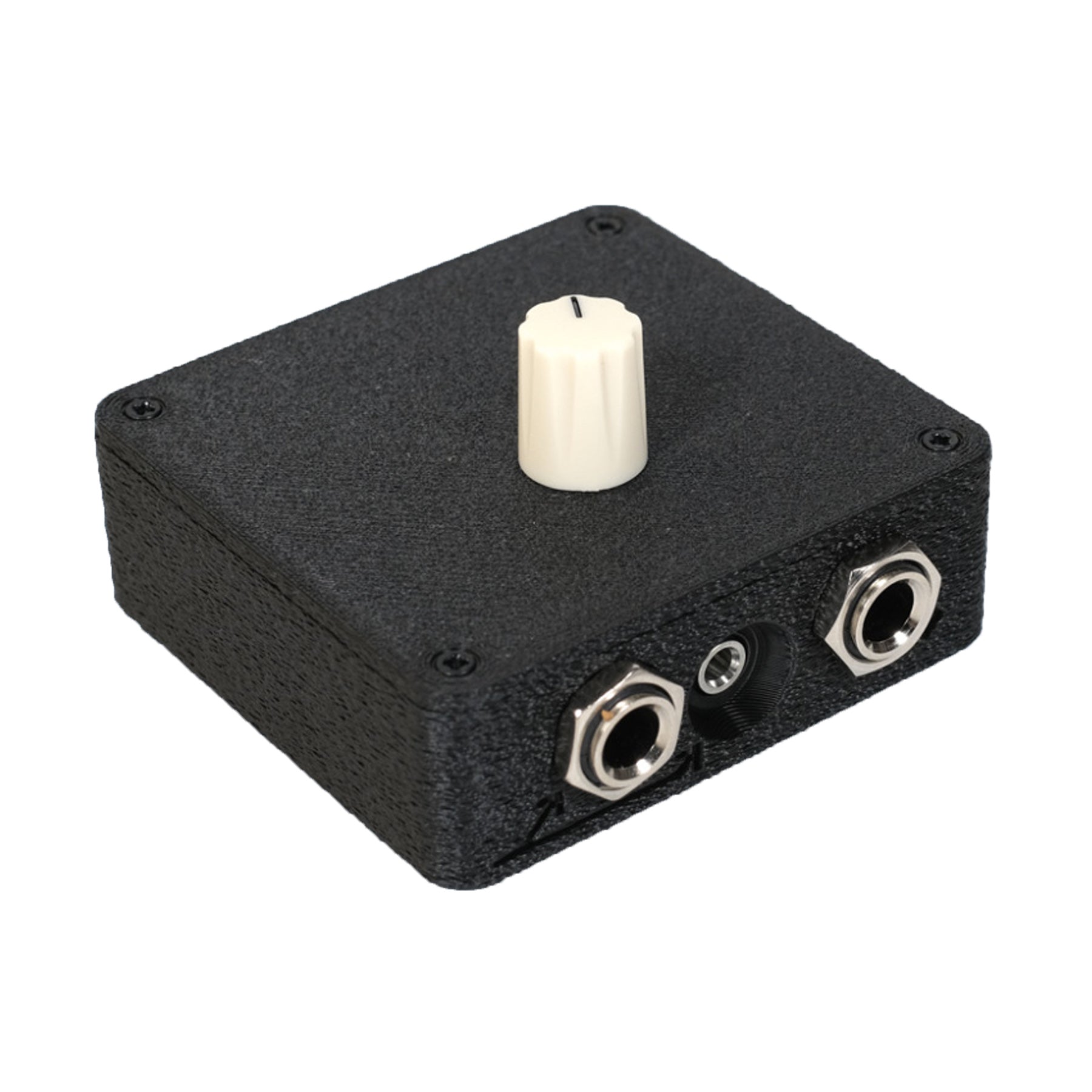

ADDAC005 features 2 inputs, a 3.5mm jack for Eurorack and a 1/4’‘ jack for larger format synthesizers. An attenuator and a 1/4’ jack output.
The 3.5mm jack has priority over the 1/4‘’ jack, if both jacks are connected only the 3.5mm will be used. When no jack is connected the attenuator knob will work as a control knob.
This is a passive device, the power needed for operation is taken from the pedal via the TRS power pin, this allows for perfect matching of the pedal’s operating voltage which can range from 3.3v to 9v.
- Width: 7cm
- Depth: 6.5cm
- Height: 5cm
